Description
Small and efficient complete hand radio set, containing radio device and connection box for the intercom,

40 FM and AM channels each.

The device contains CE and CEPT authorisation and may be used within Germany without registration and fee.

The device can be installed easily within the front storage compartment. As an option, a fastening for handle bars is available.

The delivery includes a small BNC-flex-antenna, 2 batteries/ accumulators (1×6 and 1×8 mignon batteries), charging device, belt connection, carrying loop and protection cover.

Therefore the device may as well be used as a standard hand radio.

Technical Data
– Frequency 26,565 to 27,405 MHz
– 80 channels FM/ 4 Watt
– 12 channels AM/1 Watt
– Electric condensation microphone
– Operating voltage 7,2 to 13,8 V
– Dimension (W x H x D) including a small package of accumulators appr. 70 x 140 x 30 mm, weight
appr. 190 g (not including batteries).

Facilities
– On-/ Off-Switch
– squelch
– PTT/ microphone socket
– inlet for external speaker/ microphone
– multiple function LC-display with illumination
– emergency channel
– 9 AM-/ FM-modulation-choice-button
– F-sending performance switch
– keyboard stop
– Quick-up/down
– 2 -channel supervision
– channel-scan.

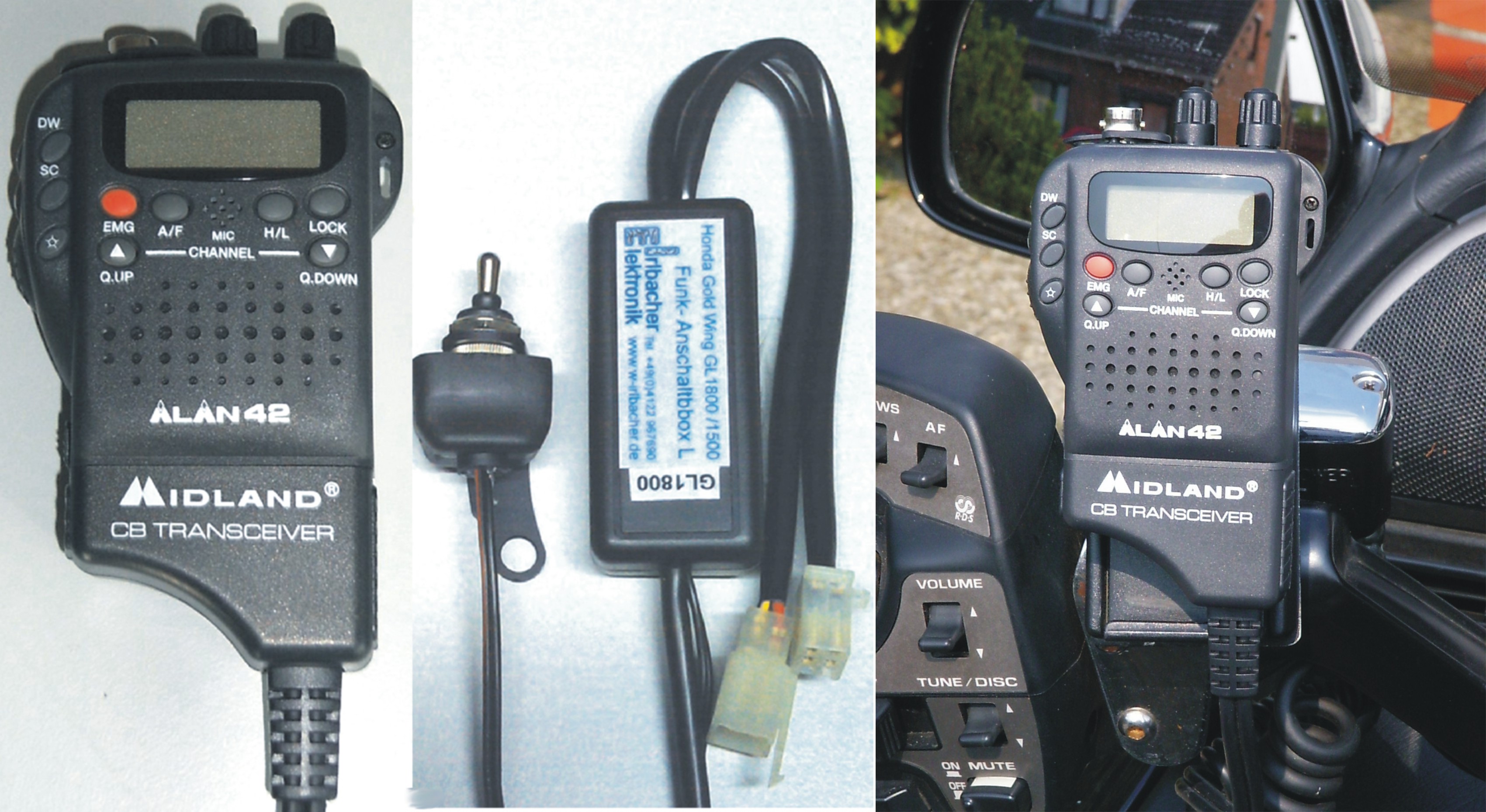

Delivery
– ALAN42 radio device set
– Junction Box L for the intercom
– Sending button.

Downloads
Assembly Instructions (german)
